Laser Settings

Laser Settings for MakerFlo Tumblers & Blanks

SETTINGS PROVIDED ARE FOR USE AS A STARTING POINT ONLY.

Due to variations in machine type, power, age, cleanliness and calibration, we strongly recommend running your own tests to determine the best settings for your equipment. MakerFlo is not responsible for failed results and does not offer refunds or replacements due to settings-related issues.

Visit Our Laser Engraving Maker Hub for more laser engraving resources.

Provide feedback on settings→

Have suggestions or feedback for our laser settings content? Please complete this form.

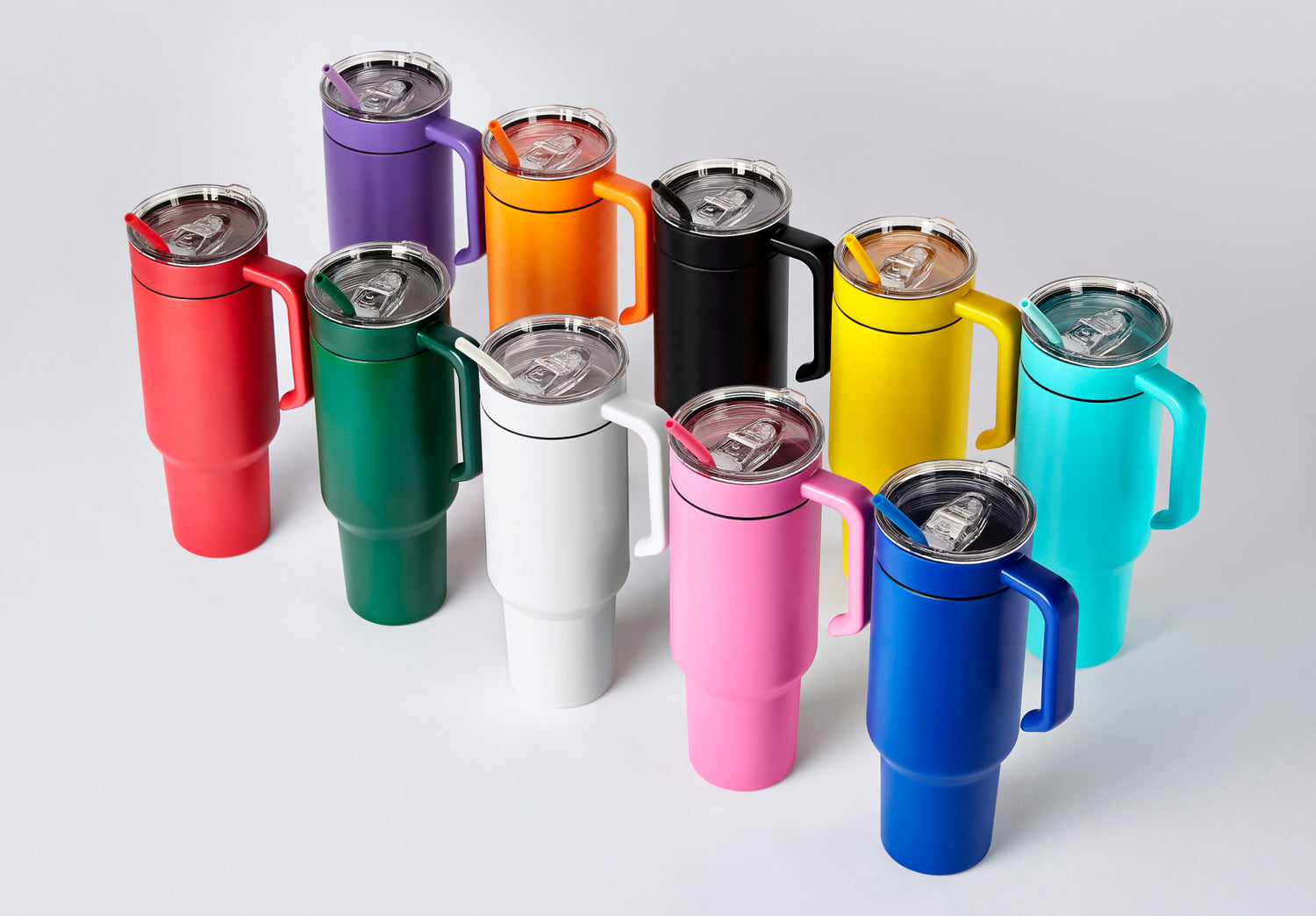

Powder Coated Tumblers

Settings For Our Standard Powder Coated Drinkware - For Electro Plated Powder Coated, please see below.

Shop Tumblers Download Spec Sheets

xTool

xTool F1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/400mm/200/2

xTool F1 (10W) RED LIGHT
Power/Speed/LPC/Passes - 40/400mm/200/1

xTool F1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 50/400 mm/s/300/1

xTool S1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/400mm/200/2

xTool S1 (10W) RED LIGHT
Power/Speed/LPC/Passes - 40/400mm/200/1

xTool S1 (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 50/400 mm/s/300/1

xTool S1 (40W) BLUE LIGHT
Power/Speed/LPC/Passes - 40/200 mm/s/160/1

xTool M1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/100mm/220/1

xTool M1 Ultra (20W)
Power/Speed/LPC/Passes - 50/400 mm/s/300/1

xTool P2 (55W)
Power/Speed/LPC/Passes -60/200/200/1

xTool D1 Pro (40W)
Power/Speed/LPC/Passes - 40/200 mm/s/160/1

Clean with Degreaser After, such as Totally Awesome Spray or Dawn PowerSpray

WeCreat

WeCreat Vista (10W)
Power/Speed/LPC/Passes - 90/125 mm/s/200/1

WeCreat Vision (20W)
Power/Speed/LPC/Passes - 80/315 mm/s/200/1

WeCreat Vision (40W)
Coming Soon!

Clean with Degreaser After, such as Totally Awesome Spray or Dawn PowerSpray

Thunder Bolt

Thunder Bolt (30W)
Power/Speed/LPC/Passes - 80/200-400 mm/s/200/1

Thunder Bolt Plus (40W)
Coming Soon!

Thunder Nova Plus(60W)
Power/Speed/LPC/Passes - 50–70/500–1000 mm/s/200/1

Clean with Degreaser After, such as Totally Awesome Spray or Dawn PowerSpray

GlowForge

Glowforge Plus (40W)
Won't fit in working area

Glowforge Pro (45W)
Won't fit in working area.

Aeon

Aeon Mira 7S (60W)
Coming Soon!

Aeon Nova 9S (100W)
Power/Speed/LPC/Passes - 35/400 mm/s/200/1

Aeon Nova 14 (100W)
Power/Speed/LPC/Passes - 35/400 mm/s/200/1

OmTech

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
Power/Speed/LPC/Passes - 40–70/150–300 mm/s/200/1

Omtech Pro (130W)
Power/Speed/LPC/Passes - 40–70/150–300 mm/s/200/1

Clean with Degreaser After, such as Totally Awesome Spray or Dawn PowerSpray

Monport

Monport (130W)
Coming Soon!

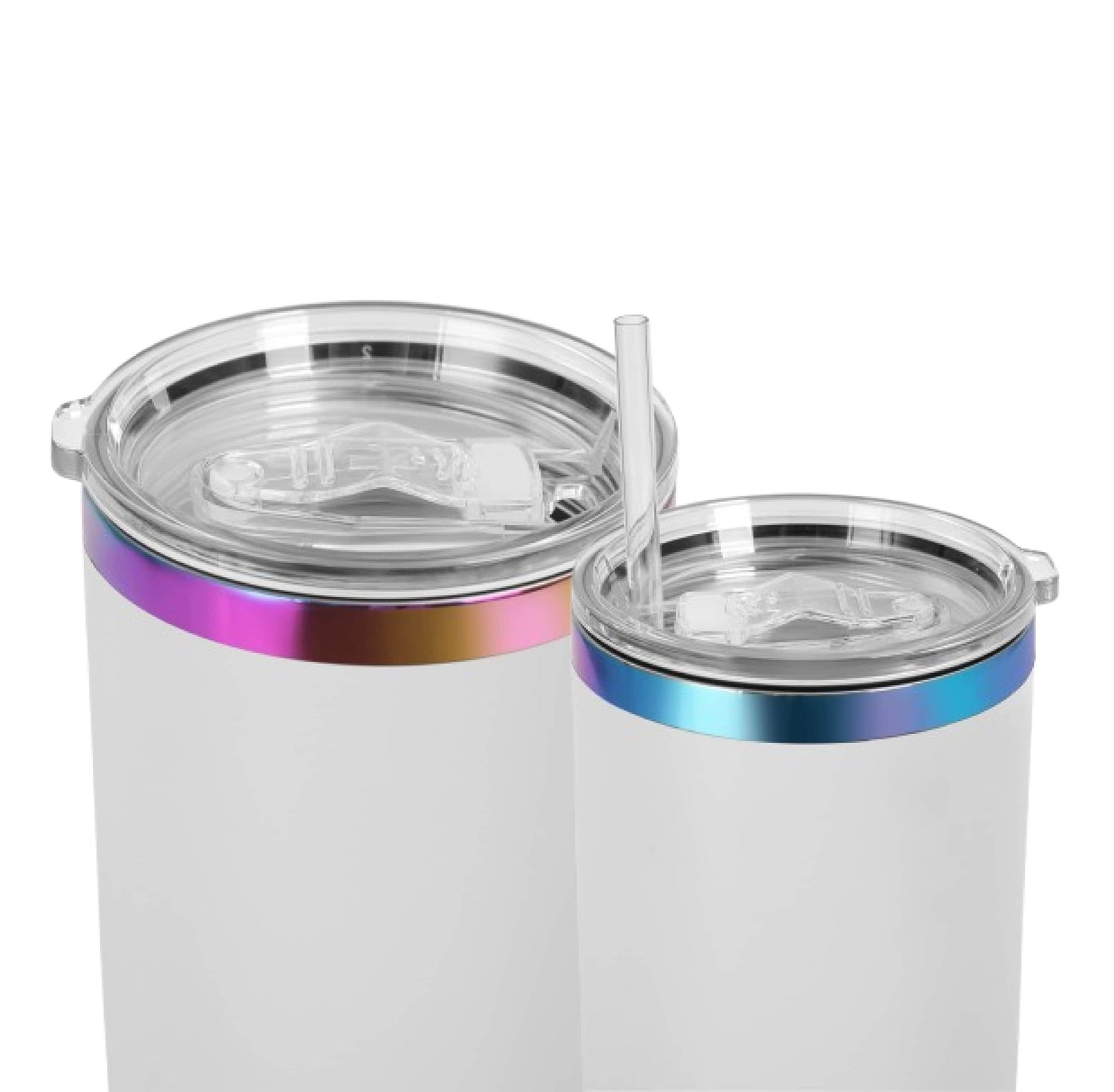

rainbow plated tumblers, white

Electroplated Tumblers

Settings for Rainbow & Gold Electro Plated Tumblers.

Electroplated Tumblers Download Spec Sheets

xTool

xTool F1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/200/mms/300/1

xTool F1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 50/400 mm/s/300/1

xTool S1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/200/mms/300/1

xTool S1 (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 50/400 mm/s/300/1

xTool S1 (40W) BLUE LIGHT
Power/Speed/LPC/Passes - 85/215 mm/s/120/1

xTool M1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/200/mms/300/1

xTool M1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 50/400 mm/s/300/1

xTool P2 (55W)
Power/Speed/LPC/Passes - 50/250/100/1

xTool D1 Pro (40W) BLUE LIGHT
Power/Speed/LPC/Passes - 85/215 mm/s/120/1

Clean with Degreaser After, such as Totally Awesome Spray or Dawn PowerSpray

WeCreat

WeCreat Vista (10W)
Power/Speed/LPC/Passes - 85/150 mm/s/200/1

WeCreat Vision (20W)
Power/Speed/LPC/Passes -80/350/200/1

WeCreat Vision (40W)
Coming Soon!

Clean with Degreaser After, such as Totally Awesome Spray or Dawn PowerSpray

Thunder Bolt

Thunder Bolt (30W)
Coming Soon!

Thunder Bolt Plus (40W)
Coming Soon!

Thunder Nova Plus (60W)
Coming Soon!

GlowForge

Glowforge Plus (40W)
Won't fit in working area.

Glowforge Pro (45W)
Won't fit in working area.

Aeon

Aeon Mira 7S (60W)
Coming Soon!

Aeon Nova 9S (100W)
Power/Speed/LPC/Passes - 20/160 mm/s/250/1

Aeon Nova 14 (100W)
Coming Soon!

OmTech

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
Coming Soon!

Omtech Pro (130W)
Coming Soon!

Monport

Monport (130W)
Coming Soon!

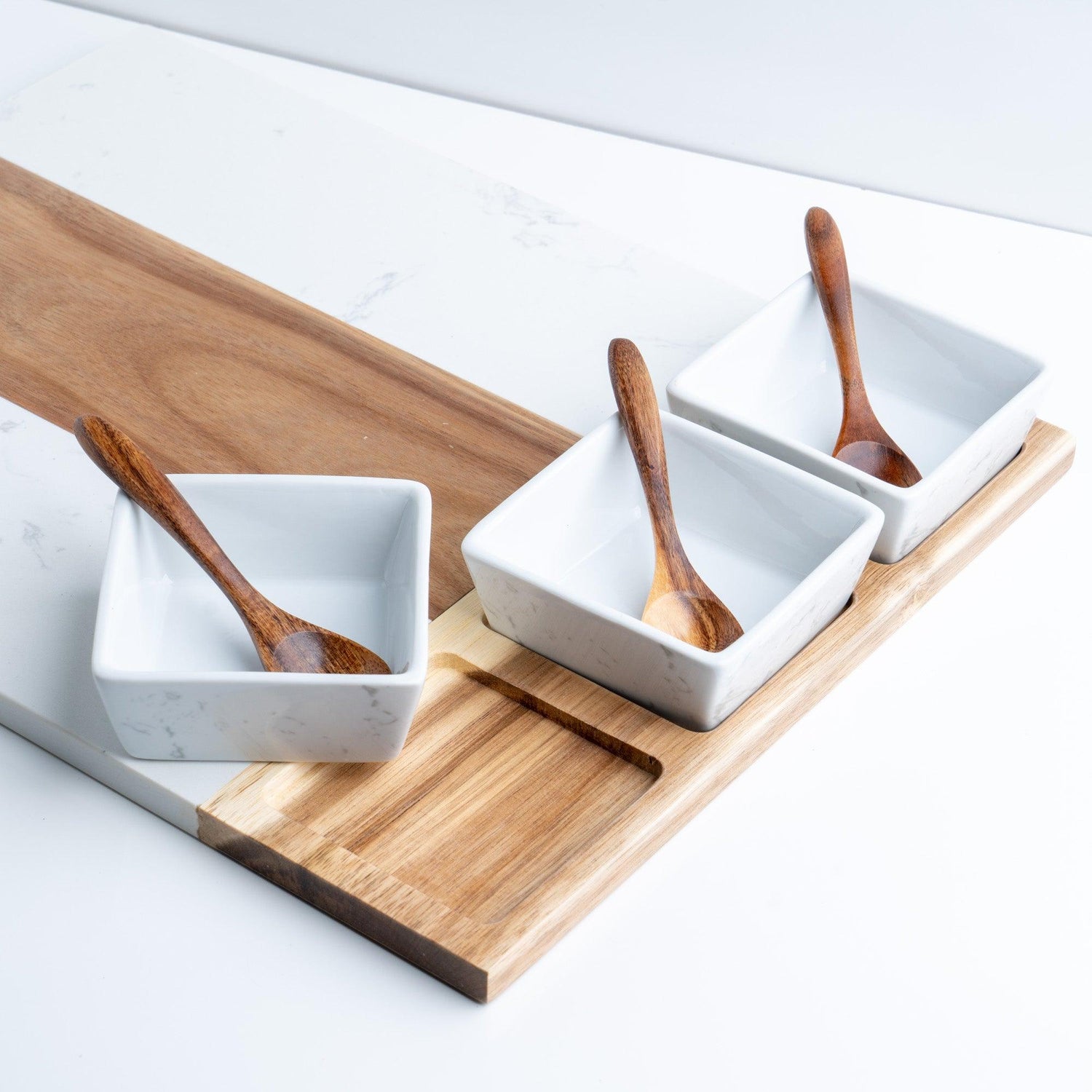

sauce bowls and dipping spoons

Marble & Acacia

Settings for our Marble Charcuterie Board, Handle Board and Marble & Wood Coasters.

Marble & Wood Collection Download Spec Sheets

xTool

xTool F1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/150mm/300/1

xTool F1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 70/300 mm/s/200/1

xTool S1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/150mm/300/1

xTool S1 (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 60/300 mm/s/200/1

xTool S1 (40W)
Power/Speed/LPC/Passes - 25/210 mm/s/210/1

xTool M1 (10W)
Power/Speed/LPC/Passes - 90/60mm/100/1

xTool M1 Ultra (20W)
Power/Speed/LPC/Passes - 45/100 mm/s/100/1

xTool P2 (55W)
Power/Speed/LPC/Passes - 30/310/220/1

xTool D1 Pro (40W)
Power/Speed/LPC/Passes - 25/210 mm/s/210/1

WeCreat

WeCreat Vista (10W)
Power/Speed/LPC/Passes - 100/160/200/1

WeCreat Vision (20W)
Power/Speed/LPC/Passes - 100/250 mm/s/200/1

WeCreat Vision (40W)
Power/Speed/LPC/Passes - 60/250/300/1

Thunder Bolt

Thunder Bolt (30W)
Power/Speed/LPC/Passes - 15/600 mm/s/200/1

Thunder Bolt Plus (40W)
Power/Speed/LPC/Passes - 30/500 mm/s/200/1

Thunder Nova Plus(60W)
Power/Speed/LPC/Passes - 20–40/200–400 mm/s/200/1

GlowForge

Glowforge Plus (40W)
Power/Speed/LPC/Passes - 30–50/80–150 mm/s/200/1

Glowforge Pro (45W)
Power/Speed/LPC/Passes - 25–45/100–200 mm/s/200/1

Aeon

Aeon Mira 7S (60W)
Power/Speed/LPC/Passes - 45/300/300/1

Aeon Nova 9S (100W)
Power/Speed/LPC/Passes - 55/400 mm/s/200/1

Aeon Nova 14 (100W)
Power/Speed/LPC/Passes - 55/400 mm/s/200/1

OmTech

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
Power/Speed/LPC/Passes - 35/200/300/1

Omtech Pro (130W)
Power/Speed/LPC/Passes - 30/250/300/1

Monport

Monport (130W)
Power/Speed/LPC/Passes - 30/150/300/1

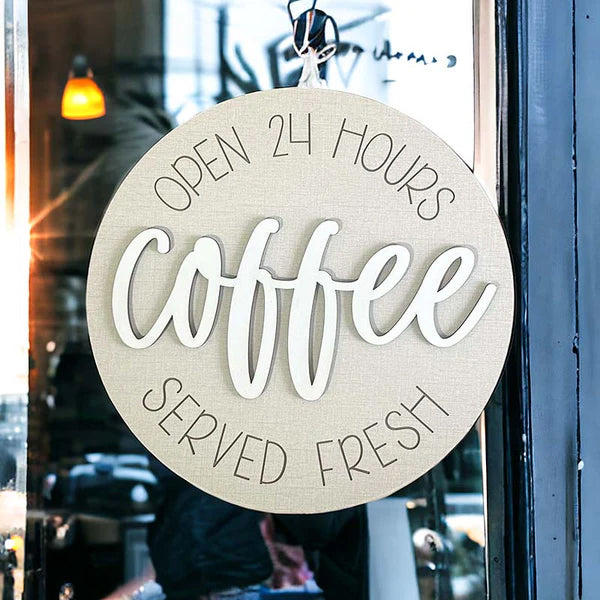

TruFlat Plywood

Use these settings for 1/8" TruFlat Plywood.

TruFlat Wood for Laser Cutting & Engraving

xTool

xTool F1 (10W) BLUE LIGHT
Engrave (Power/Speed/LPC/Passes): 100/150mm/300/1
Cut (Power/Speed/Passes): 70/8mm/9

xTool F1 Ultra (20W) BLUE LIGHT
Engrave (Power/Speed/LPC/Passes): 70/300 mm/s/200/1
Cut (Power/Speed/Passes): 60/35 mm/s/8

xTool S1 (10W) BLUE LIGHT
Engrave (Power/Speed/LPC/Passes): 100/150mm/300/1
Cut (Power/Speed/Passes): 70/8mm/9

xTool S1 (20W) BLUE LIGHT
Engrave (Power/Speed/LPC/Passes): 70/300 mm/s/200/1
Cut (Power/Speed/Passes): 60/35 mm/s/8

xTool S1 (40W) BLUE LIGHT
Engrave (Power/Speed/LPC/Passes): 40/300 mm/s/200/1
Cut (Power/Speed/Passes): 60/35 mm/s/5

xTool M1 (10W) BLUE LIGHT
Engrave (Power/Speed/LPC/Passes): 100/150mm/s/300/1
Cut (Power/Speed/Passes): 70/8mm/9

xTool M1 Ultra (20W) BLUE LIGHT
Engrave (Power/Speed/LPC/Passes): 70/300 mm/s/200/1
Cut (Power/Speed/Passes): 60/35 mm/s/8

xTool P2 (55W)
Engrave (Power/Speed/LPC/Passes): 20/80 mm/s/140/1
Cut (Power/Speed/Passes): 100/18 mm/s/2

xTool D1 Pro (40W)
Coming Soon!

WeCreat

WeCreat Vista (10W)
Cut (Power/Speed/Passes): 100/2/1

WeCreat Vision (20W)
Coming Soon!

WeCreat Vision (40W)
Cut (Power/Speed/Passes): 80/12mm/s/1

Thunder Bolt

Thunder Bolt (30W)
Engrave (Power/Speed/LPC/Passes): 50/500 mm/s/200/1
Cut (Power/Speed/Passes): 75/10 mm/s/1

Thunder Bolt Plus (40W)
Engrave (Power/Speed/LPC/Passes): 20–40/200–400 mm/s/200/1
Cut (Power/Speed/Passes): 90/3 mm/s/1

Thunder Nova Plus(60W)
Engrave (Power/Speed/LPC/Passes): 20–40/200–400 mm/s/200/1
Cut (Power/Speed/Passes): 60–80/15–25 mm/s/1

GlowForge

Glowforge Plus (40W)
Engrave (Power/Speed/LPC/Passes): 30–50/80–150 mm/s/200/1
Cut (Power/Speed/Passes): 80–100/10–15 mm/s/1

Glowforge Pro (45W)
Engrave (Power/Speed/LPC/Passes): 25–45/100–200 mm/s/200/1
Cut (Power/Speed/Passes): 70–90/12–18 mm/s/1

Aeon

Aeon Mira 7S (60W)
Coming Soon!

Aeon Nova 9S (100W)
Coming Soon!

Aeon Nova 14 (100W)
Coming Soon!

OmTech

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
Engrave (Power/Speed/LPC/Passes): 20–40/100–200 mm/s/200/1
Cut (Power/Speed/Passes): 50–70/15–20 mm/s/1

Omtech Pro (130W)
Engrave (Power/Speed/LPC/Passes): 15–35/150–250 mm/s/200/1
Cut (Power/Speed/Passes): 40–60/20–30 mm/s/1

Monport

Monport (130W)
Coming Soon!

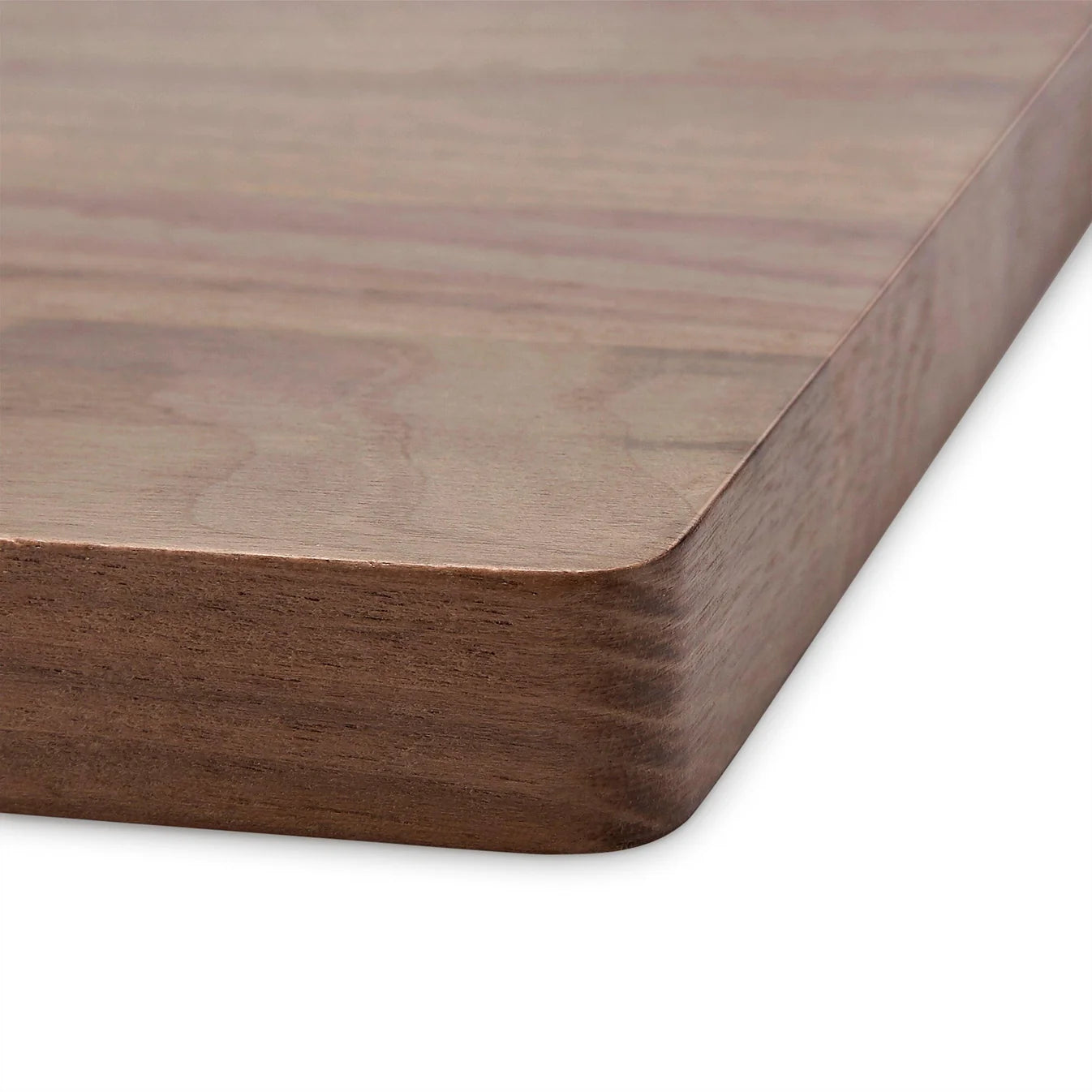

cutting board corner rounded

Cutting Boards

Laser Settings for Bamboo, Rubber Wood, Walnut Wood & Resin, Olive Wood Cutting Boards

Cutting Boards Download Spec Sheets

xTool

xTool F1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/150mm/300/1

xTool F1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 70/300 mm/s/200/1

xTool S1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/150mm/300/1

xTool S1 (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 60/300 mm/s/200/1

xTool S1 (40W)
Power/Speed/LPC/Passes - 25/210 mm/s/210/1

xTool M1 (10W)
Power/Speed/LPC/Passes - 90/60mm/100/1

xTool M1 Ultra (20W)
Power/Speed/LPC/Passes - 45/100 mm/s/100/1

xTool P2 (55W)
Power/Speed/LPC/Passes - 30/310/220/1

xTool D1 Pro (40W)
Power/Speed/LPC/Passes - 25/210 mm/s/210/1

WeCreat

WeCreat Vista (10W)
Power/Speed/LPC/Passes - 100/160/200/1

WeCreat Vision (20W)
Power/Speed/LPC/Passes - 100/250 mm/s/200/1

WeCreat Vision (40W)
Power/Speed/LPC/Passes - 60/250/300/1

Thunder Bolt

Thunder Bolt (30W)
Power/Speed/LPC/Passes - 15/600 mm/s/200/1

Thunder Bolt Plus (40W)
Power/Speed/LPC/Passes - 30/500 mm/s/200/1

Thunder Nova Plus(60W)
Power/Speed/LPC/Passes - 20–40/200–400 mm/s/200/1

GlowForge

Glowforge Plus (40W)
Power/Speed/LPC/Passes - 30–50/80–150 mm/s/200/1

Glowforge Pro (45W)
Power/Speed/LPC/Passes - 25–45/100–200 mm/s/200/1

Aeon

Aeon Mira 7S (60W)
Power/Speed/LPC/Passes - 45/300/300/1

Aeon Nova 9S (100W)
Power/Speed/LPC/Passes - 55/400 mm/s/200/1

Aeon Nova 14 (100W)
Power/Speed/LPC/Passes - 55/400 mm/s/200/1

OmTech

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
Power/Speed/LPC/Passes - 35/200/300/1

Omtech Pro (130W)
Power/Speed/LPC/Passes - 30/250/300/1

Monport

Monport (130W)
Power/Speed/LPC/Passes - 30/150/300/1

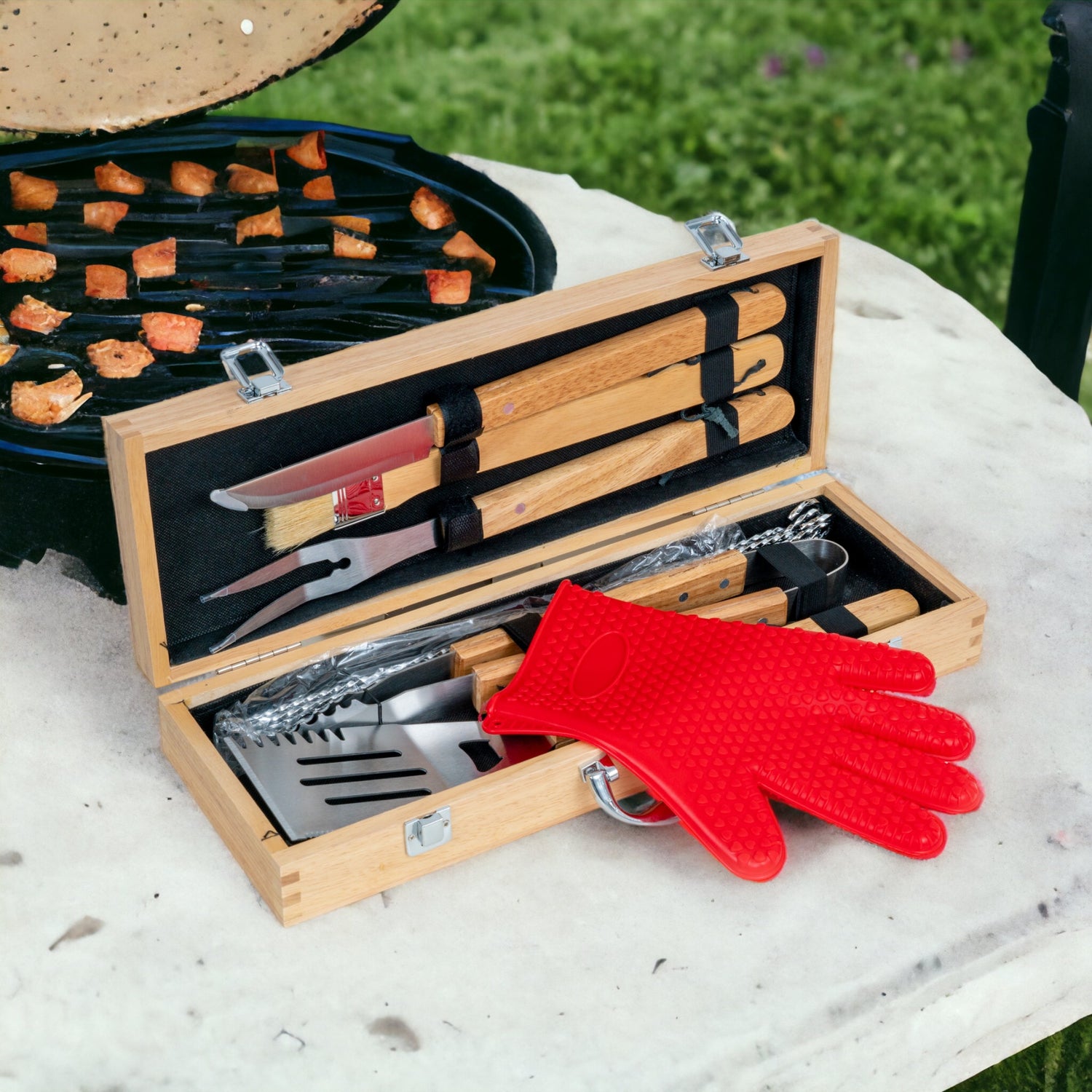

BBQ Set & Spatula

Laser Settings for BBQ Set, Grilling Spatula, Combs & Bark Slices.

BBQ Sets, Spatulas & Utility Download Spec Sheets

xTool

xTool F1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/150mm/300/1

xTool F1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 70/300 mm/s/200/1

xTool S1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/150mm/300/1

xTool S1 (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 60/300 mm/s/200/1

xTool S1 (40W)
Power/Speed/LPC/Passes - 25/210 mm/s/210/1

xTool M1 (10W)
Power/Speed/LPC/Passes - 90/60mm/100/1

xTool M1 Ultra (20W)
Power/Speed/LPC/Passes - 45/100 mm/s/100/1

xTool P2 (55W)
Power/Speed/LPC/Passes - 30/310/220/1

xTool D1 Pro (40W)
Power/Speed/LPC/Passes - 25/210 mm/s/210/1

WeCreat

WeCreat Vista (10W)
Power/Speed/LPC/Passes - 100/160/200/1

WeCreat Vision (20W)
Power/Speed/LPC/Passes - 100/250 mm/s/200/1

WeCreat Vision (40W)
Power/Speed/LPC/Passes - 60/250/300/1

Thunder Bolt

Thunder Bolt (30W)
Power/Speed/LPC/Passes - 15/600 mm/s/200/1

Thunder Bolt Plus (40W)
Power/Speed/LPC/Passes - 30/500 mm/s/200/1

Thunder Nova Plus(60W)
Power/Speed/LPC/Passes - 20–40/200–400 mm/s/200/1

GlowForge

Glowforge Plus (40W)
Power/Speed/LPC/Passes - 30–50/80–150 mm/s/200/1

Glowforge Pro (45W)
Power/Speed/LPC/Passes - 25–45/100–200 mm/s/200/1

Aeon

Aeon Mira 7S (60W)
Power/Speed/LPC/Passes - 45/300/300/1

Aeon Nova 9S (100W)
Power/Speed/LPC/Passes - 55/400 mm/s/200/1

Aeon Nova 14 (100W)
Power/Speed/LPC/Passes - 55/400 mm/s/200/1

OmTech

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
Power/Speed/LPC/Passes - 35/200/300/1

Omtech Pro (130W)
Power/Speed/LPC/Passes - 30/250/300/1

Monport

Monport (130W)
Power/Speed/LPC/Passes - 30/150/300/1

pocket knife rugged design

Pocket Knives

Laser Settings for Pocket Knives. Note - we have different settings for Wood and Black Metal by machine.

Pocket Knives Download Spec Sheets

xTool

Natural & Rosewood
Power/Speed/LPC/Passes

xTool F1 (10W) BLUE LIGHT
100/150mm/300/1

xTool F1 Ultra (20W) BLUE LIGHT
70/300 mm/s/200/1

xTool S1 (10W) BLUE LIGHT
100/150mm/300/1

xTool S1 (20W) BLUE LIGHT
60/300 mm/s/200/1

xTool S1 (40W)
25/210 mm/s/210/1

xTool M1 (10W)
90/60mm/100/1

xTool M1 Ultra (20W)
45/100 mm/s/100/1

xTool P2 (55W)
30/310/220/1

xTool D1 Pro (40W)
25/210 mm/s/210/1

Black Metal
Power/Speed/LPC/Passes

xTool F1 (10W) RED LIGHT
100/400 mm/s/100/1

xTool F1 Ultra (20W) RED LIGHT
70/400 mm/s/100/1

xTool S1 (10W) RED LIGHT
100/400 mm/s/100/1

xTool S1 (20W) RED LIGHT
70/400 mm/s/100/1

xTool S1 (40W) RED LIGHT
50/550/200/1

xTool M1 (10W) RED LIGHT
100/400 mm/s/100/1

xTool M1 Ultra (20W) RED LIGHT
70/400 mm/s/100/1

xTool P2 (55W)
Coming Soon!

xTool D1 Pro (40W)
Coming Soon!

WeCreat

Natural & Rosewood
Power/Speed/LPC/Passes

WeCreat Vista (10W)
100/160/200/1

WeCreat Vision (20W)
100/250 mm/s/200/1

WeCreat Vision (40W)
60/250/300/1

Black Metal
Power/Speed/LPC/Passes

WeCreat Vista (10W)
Coming Soon!

WeCreat Vision (20W)
Coming Soon!

WeCreat Vision (40W)
Coming Soon!

Thunder Bolt

Natural & Rosewood
Power/Speed/LPC/Passes

Thunder Bolt (30W)
15/600 mm/s / 200 / 1

Thunder Bolt Plus (40W)
30 / 500 mm/s / 200 / 1

Thunder Nova Plus (60W)
20–40 / 200–400 mm/s / 200 / 1

Black Metal
Power/Speed/LPC/Passes

Thunder Bolt (30W)
Coming Soon!

Thunder Bolt Plus (40W)
20 / 200 mm/s / 200 / 1

Thunder Nova Plus(60W)
30–50 / 200–400 mm/s / 200 / 1

GlowForge

Natural & Rosewood
Power/Speed/LPC/Passes

Glowforge Plus (40W)
30–50 / 80–150 mm/s / 200 / 1

Glowforge Pro (45W)
25–45 / 100–200 mm/s / 200 / 1

Black Metal
Power/Speed/LPC/Passes

Glowforge Plus (40W)
40–60 / 80–150 mm/s / 200 / 1

Glowforge Pro (45W)
35–55 / 100–200 mm/s / 200/ 1

Aeon

Natural & Rosewood
Power/Speed/LPC/Passes

Aeon Mira 7S (60W)
45/300/300/1

Aeon Nova 9S (100W)
55/400 mm/s/200/1

Aeon Nova 14 (100W)
55/400 mm/s/200/1

Black Metal
Power/Speed/LPC/Passes


Aeon Mira 7S (60W)
Coming Soon!

Aeon Nova 9S (100W)
Coming Soon!

Aeon Nova 14 (100W)
Coming Soon!

OmTech

Natural & Rosewood
Power/Speed/LPC/Passes

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
35/200/300/1

Omtech Pro (130W)
30/250/300/1

Black Metal
Power/Speed/LPC/Passes

Omtech Fiber (60W) RED LIGHT
25/900/200/1

Omtech (80W)
30–50 / 100–200 mm/s / 200 / 1

Omtech Pro (130W)
25–45 / 150–250 mm/s / 200 / 1

Monport

Natural & Rosewood

Monport (130W)
Power/Speed/LPC/Passes - 30/150/300/1

Flasks

Laser Settings for Flasks. Note - we have different settings for Stainless Steel and Black Flasks by machine.

Shop Flask with Funnel Download Spec Sheets

xTool

Black Flask
Power/Speed/LPC/Passes

xTool F1 (10W) BLUE LIGHT
100/400 mm/s/200/2

xTool F1 Ultra (20W) BLUE LIGHT
70/400 mm/s/200/1

xTool S1 (10W) BLUE LIGHT
100/400 mm/s/200/2

xTool S1 (20W) BLUE LIGHT
70/400 mm/s/200/1

xTool S1 (40W) BLUE LIGHT
60 / 140 / 200/ 1

xTool M1 (10W) BLUE LIGHT
100/400 mm/s/200/2

xTool M1 Ultra (20W) BLUE LIGHT
70/400 mm/s/200/1

xTool P2 (55W) BLUE LIGHT
55 / 150 / 300 / 1

xTool D1 Pro (40W)
Coming Soon!

Stainless Steel Flask
Power/Speed/LPC/Passes

xTool F1 (10W) RED LIGHT
90 / 150 / 200 / 1

xTool F1 Ultra (20W) RED LIGHT
50 / 600 / 200 / 1

xTool S1 (10W) RED LIGHT
100 / 80 mm/s / 100 / 1

xTool S1 (20W) RED LIGHT
70 / 450 / 200 / 1

xTool S1 (40W) RED LIGHT
55 / 500 / 200 / 1

xTool M1 (10W) RED LIGHT
100 / 80 / 200 / 1

xTool M1 Ultra (20W) RED LIGHT
45 / 500 / 200 / 1

xTool P2 (55W) RED LIGHT
95 / 120 / 300 / 1

xTool D1 Pro (40W) RED LIGHT
55 / 500 / 200 / 1

WeCreat

Black Flasks
Power/Speed/LPC/Passes

WeCreat Vista (10W) BLUE LIGHT
50 / 40 / 200 / 1

WeCreat Vision (20W) BLUE LIGHT
80 / 100 / 200 / 1

WeCreat Vision (40W) BLUE LIGHT
65 / 140 / 300 / 1

Stainless Steel Flasks
Power/Speed/LPC/Passes

WeCreat Vista (10W)
Not applicable

WeCreat Vision (20W) RED LIGHT
90 / 140 / 300 / 1

WeCreat Vision (40W) RED LIGHT
85 / 110 / 300 / 1

Thunder Bolt

Black Flasks
Power/Speed/LPC/Passes

Thunder Bolt (30W)
85 / 150 / 300 / 1

Thunder Bolt Plus (40W)
80 / 160 / 300 / 1

Thunder Nova Plus(60W)
70 / 180 / 300 / 1

Stainless Steel Flasks
Power/Speed/LPC/Passes

Thunder Bolt (30W)
95 / 80 / 300 / 1

Thunder Bolt Plus (40W)
90 / 90 / 300 / 1

Thunder Nova Plus(60W)
75 / 130 / 300 / 1

GlowForge

Black Flasks
Power/Speed/LPC/Passes

Glowforge Plus (40W)
85 / 150 / 300 / 1

Glowforge Pro (45W)
80 / 160 / 300 / 1

Stainless Steel Flasks
Power/Speed/LPC/Passes

Glowforge Plus (40W)
90 / 100 / 300 / 1

Glowforge Pro (45W)
85 / 110 / 300 / 1

Aeon

Black Flasks
Power/Speed/LPC/Passes

Aeon Mira 7S (60W)
75 / 180 / 300 / 1

Aeon Nova 9S (100W)
60 / 200 / 300 / 1

Aeon Nova 14 (100W)
60 / 200 / 300 / 1

Stainless Steel Flasks
Power/Speed/LPC/Passes

Aeon Mira 7S (60W)
70 / 150 / 300 / 1

Aeon Nova 9S (100W)
50 / 180 / 300 / 1

Aeon Nova 14 (100W)
50 / 180 / 300 / 1

OmTech

Black Flasks
Power/Speed/LPC/Passes

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
60 / 160 / 300 / 1

Omtech Pro (130W)
50 / 200 / 300 / 1

Stainless Steel Flasks
Power/Speed/LPC/Passes

Omtech Fiber (60W)
25 / 700 / 200 / 1

Omtech (80W)
55 / 140 / 300 / 1

Omtech Pro (130W)
40 / 160 / 300 / 1

Monport

Black Flasks
Power/Speed/LPC/Passes

Monport (130W)
55 / 200 / 300 / 1

Stainless Steel Flasks
Power/Speed/LPC/Passes

Monport (130W)
40 / 160 / 300 / 1

Valet Boxes

Laser Settings for medium and large valet box.

Valet Boxes Download Spec Sheets

xTool

xTool F1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/300 mm/s/140/1

xTool F1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/380 mm/s/140/1

xTool S1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/350 mm/s/140/1

xTool S1 (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/380 mm/s/140/1

xTool S1 (40W)
Coming Soon!

xTool M1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/300 mm/s/140/1

xTool M1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 80/380 mm/s/140/1

xTool P2 (55W)
Coming Soon!

xTool D1 Pro (40W)
Coming Soon!

WeCreat

WeCreat Vista (10W)
Coming Soon!

WeCreat Vision (20W)
Coming Soon!

WeCreat Vision (40W)
Coming Soon!

Thunder Bolt

Thunder Bolt (30W)
Coming Soon!

Thunder Bolt Plus (40W)
Coming Soon!

Thunder Nova Plus (60W)
Coming Soon!

GlowForge

Glowforge Plus (40W)
Coming Soon!

Glowforge Pro (45W)
Coming Soon!

Aeon

Aeon Mira 7S (60W)
Coming Soon!

Aeon Nova 9S (100W)
Coming Soon!

Aeon Nova 14 (100W)
Coming Soon!

OmTech

Omtech Fiber (60W)
Not applicable

Omtech (80W)
Power/Speed/LPC/Passes
20–40 / 200–300 mm/s / 200 / 1

Omtech Pro (130W)
Power/Speed/LPC/Passes
15–35 / 250–350 mm/s / 200 / 1

Monport

Monport (130W)
Coming Soon!

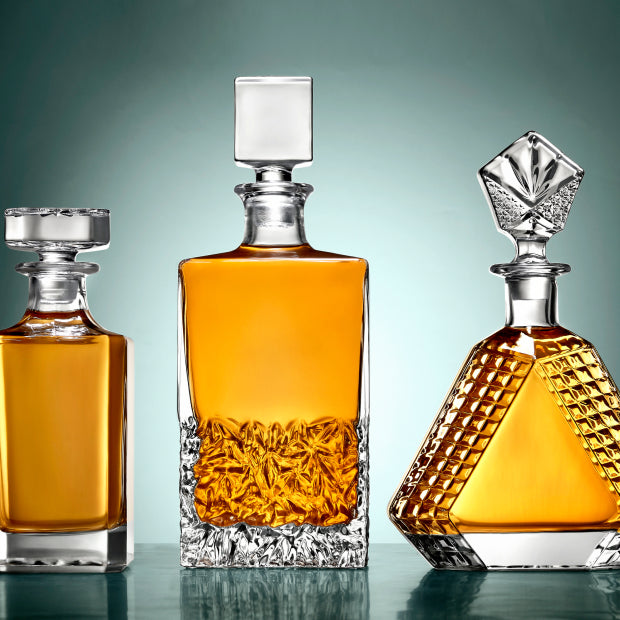

Glassware

Laser Settings for Decanters & Rocks Glasses.

Decanters & Sets Download Spec Sheets

xTool

xTool F1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/50 mm/s/140/1

xTool F1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/100 mm/s/200/1

xTool S1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/50 mm/s/140/1

xTool S1 (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/25 mm/s/200/1

xTool S1 (40W)
Coming Soon!

xTool M1 (10W)
Power/Speed/LPC/Passes - 100/50 mm/s/140/1

xTool M1 Ultra (20W)
Power/Speed/LPC/Passes - 100/25 mm/s/200/1

xTool P2 (55W)
Power/Speed/LPC/Passes - 24/600/200/1

xTool D1 Pro (40W)
Coming Soon!

WeCreat

WeCreat Vista (10W)
Coming Soon!

WeCreat Vision (20W)
Coming Soon!

WeCreat Vision (40W)
Coming Soon!

Thunder Bolt

Thunder Bolt (30W)
Power/Speed/LPC/Passes
30/-/200/1

Thunder Bolt Plus (40W)
Power/Speed/LPC/Passes
30/400 mm/s/200/1

Thunder Nova Plus(60W)
Power/Speed/LPC/Passes
20–40 / 300–500 mm/s / 200 / 1

GlowForge

Glowforge Plus (40W)
Won't fit in working area.

Glowforge Pro (45W)
Won't fit in working area.

Aeon

Aeon Mira 7S (60W)
Coming Soon!

Aeon Nova 9S (100W)
Power/Speed/LPC/Passes - 10/175 mm/s/200/1

Aeon Nova 14 (100W)
Power/Speed/LPC/Passes - 10/175 mm/s/200/1

OmTech

Omtech (80W)
Power/Speed/LPC/Passes
20–40 / 200–300 mm/s / 200 / 1

Omtech Pro (130W)
Power/Speed/LPC/Passes
15–35 / 250–350 mm/s / 200 / 1

Monport

Monport (130W)
Coming Soon!

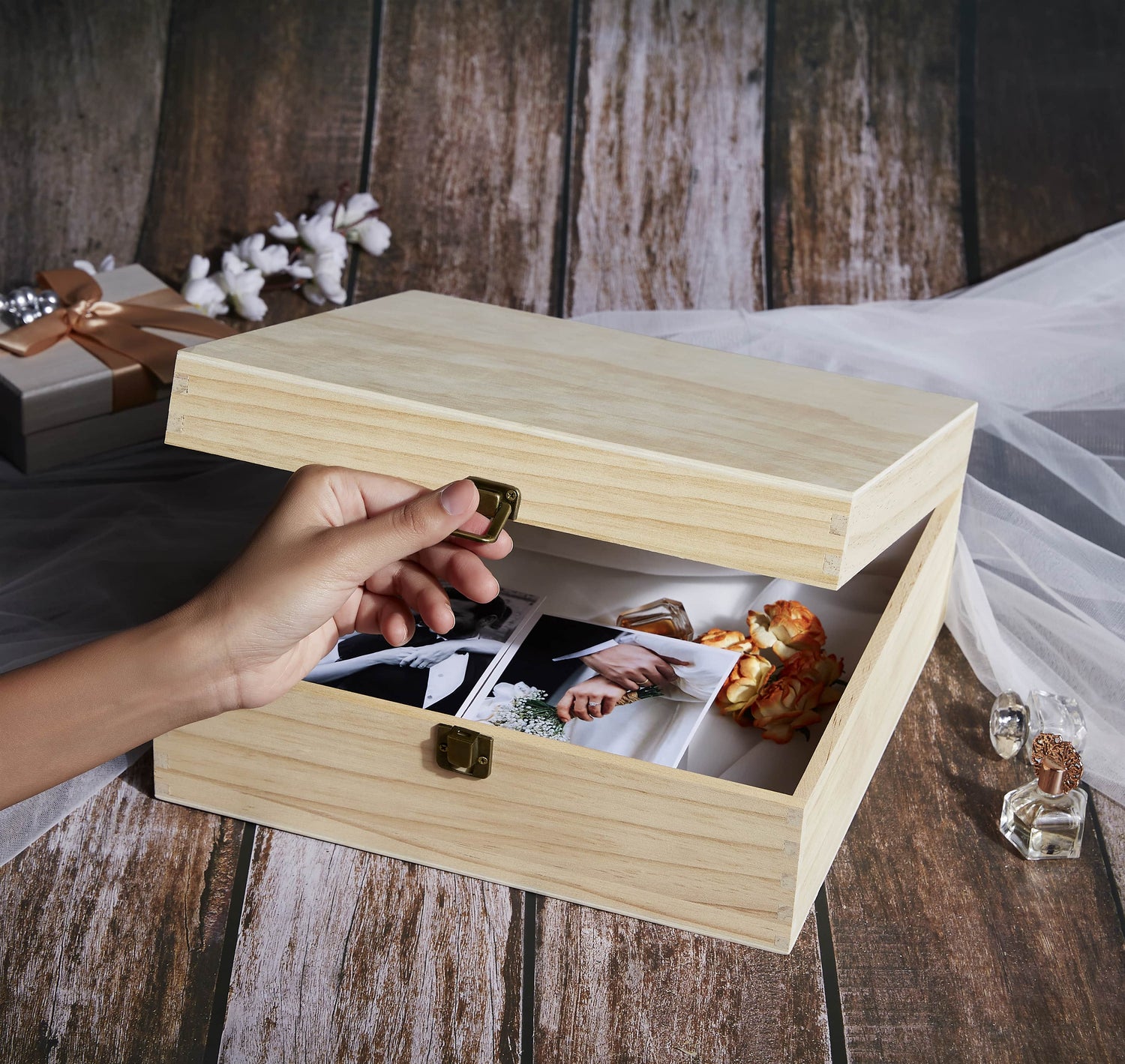

Wood Boxes

Laser Settings for Wood Cigar & Memory Boxes.

Wood Boxes Download Spec Sheets

xTool

xTool F1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes - 100/150mm/140/1

xTool F1 Ultra (20W) BLUE LIGHT
Power/Speed/LPC/Passes -  45/100 mm/s/100/1

xTool S1 (10W) BLUE LIGHT
Power/Speed/LPC/Passes -  100/150mm/140/1

xTool S1 (20W) BLUE LIGHT
Power/Speed/LPC/Passes - 45/100 mm/s/100/1

xTool S1 (40W)
Power/Speed/LPC/Passes - 25/210 mm/s/210/1

xTool M1 (10W)
Power/Speed/LPC/Passes - 90/60mm/100/1

xTool M1 Ultra (20W)
Power/Speed/LPC/Passes - 45/100 mm/s/100/1

xTool P2 (55W)
Power/Speed/LPC/Passes - 15/400 mm/s/100/1

xTool D1 Pro (40W)
Power/Speed/LPC/Passes - 25/210 mm/s/210/1

WeCreat

WeCreat Vista (10W)
Power/Speed/LPC/Passes - 100/160/200/1

WeCreat Vision (20W)
Power/Speed/LPC/Passes - 100/250 mm/s/200/1

WeCreat Vision (40W)
Coming Soon!

Thunder Bolt

Thunder Bolt (30W)
Power/Speed/LPC/Passes
15 / 600 mm/s / 200 / 1

Thunder Bolt Plus (40W)
Power/Speed/LPC/Passes
30 / 500 mm/s / 200 / 1

Thunder Nova Plus(60W)
Power/Speed/LPC/Passes
20–40 / 200–400 mm/s / 200 / 1

GlowForge

Glowforge Plus (40W)
Power/Speed/LPC/Passes
30–50 / 80–150 mm/s / 200 / 1

Glowforge Pro (45W)
Power/Speed/LPC/Passes
25–45 / 100–200 mm/s / 200 / 1

Aeon

Aeon Mira 7S (60W)
Coming Soon!

Aeon Nova 9S (100W)
Power/Speed/LPC/Passes
15 / 450 mm/s / 200 / 1

Aeon Nova 14 (100W)
Power/Speed/LPC/Passes
15 / 450 mm/s / 200 / 1

OmTech

Omtech Fiber (60W)
Not Applicable

Omtech (80W)
Power/Speed/LPC/Passes
20–40 / 100–200 mm/s / 200 / 1

Omtech Pro (130W)
Power/Speed/LPC/Passes
15–35 / 150–250 mm/s / 200 / 1

Monport

Monport (130W)
Coming Soon!
